KEY FEATURES AND BENEFITS

• Comprehensive Flow Behavior Analysis:
  Utilize controlled shear stress/shear rate operation to thoroughly analyze flow behavior, including viscosity profiling, thixotropic response, creep analysis, and yield stress determination.
• Large User-Friendly Touch Screen:
  Intuitive touch screen interface simplifies operation, making it easy to navigate and control test parameters.
• Quick Connect Coupling System:
  Effortlessly attach and detach spindles with the quick connect coupling system, reducing setup time.
• Auto Spindle Recognition:
  The spindle barcode feature automatically recognizes the spindle, ensuring accurate data entry and streamlined operation.
• Small Sample Size:
  Conduct tests with very small sample volumes, enabling rapid setup and cleanup, ideal for environments with limited sample availability.
• Rugged Design:
  Built for durability, this instrument is designed to withstand the rigors of the production floor while maintaining precision and reliability.
• Increased Torque Motor:
  Equipped with an enhanced 200 Nm torque motor, this instrument can test even the toughest samples, ensuring comprehensive analysis across a wide range of materials.
• Motorized Stand:
  Easily adjust the height with the motorized stand, providing convenience and precision during testing.
• Advanced Temperature Control:
  Achieve precise temperature regulation from -20°C to 180°C with options for direct immersion in a bath or external circulation using the FTKY3 water jacket.
• High-Precision Cylindric Geometries:
  The use of cylindric geometries ensures the most accurate measurement results, particularly in low-viscosity ranges.

APPLICATIONS

• Adhesives:
  Accurately measure the rheological properties of adhesives, ensuring consistent application and performance.
• Biomass:
  Analyze the flow behavior of biomass materials, essential for optimizing processing conditions.
• Food and Beverages:
  Perform viscosity and texture measurements to maintain quality control in food production.
• Gypsum:
  Test gypsum slurries to optimize the production process and ensure product quality.
• Pharmaceuticals:
  Ensure the stability and performance of pharmaceutical formulations through precise rheological testing.
• Chemical Production:
  Measure the flow properties of chemicals to maintain product consistency and quality.
• Paints and Coatings:
  Analyze the rheological behavior of paints and coatings to ensure correct application and performance characteristics.
• Petroleum:
  Test the viscosity and flow behavior of petroleum products under various conditions.

SPECIFICATIONS

• CCT-DG
  • Viscosity Range: 0.0006 – 8k Pa·s
  • Max. Shear Stress: 0.043 – 4344 Pa
  • Sample Volume: 15.7 mL
• CCT-40
  • Viscosity Range: 0.004 – 55k Pa·s
  • Max. Shear Stress: 0.0215 – 2148 Pa
  • Sample Volume: 68.5 mL
• CCT-25
  • Viscosity Range: 0.027 – 354k Pa·s
  • Max. Shear Stress: 0.013 – 1289 Pa
  • Sample Volume: 16.8 mL
• CCT-14
  • Viscosity Range: 0.151 – 2.01M Pa·s
  • Max. Shear Stress: 0.013 – 1297 Pa
  • Sample Volume: 3.4 mL
• CCT-8
  • Viscosity Range: 0.813 – 10.83M Pa·s
  • Max. Shear Stress: 0.013 – 1287 Pa
  • Sample Volume: 1.0 mL

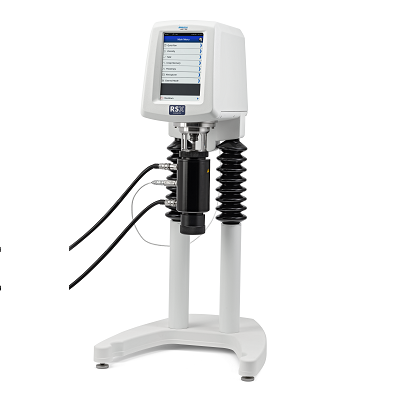

WHY CHOOSE THE RSX COAXIAL CYLINDER RHEOMETER?

The RSX Coaxial Cylinder Rheometer offers unmatched flexibility, precision, and ease of use, making it an essential tool for quality control and advanced rheological research. Its robust design, high torque motor, and comprehensive temperature control options deliver reliable and repeatable results across a wide range of industrial applications.
